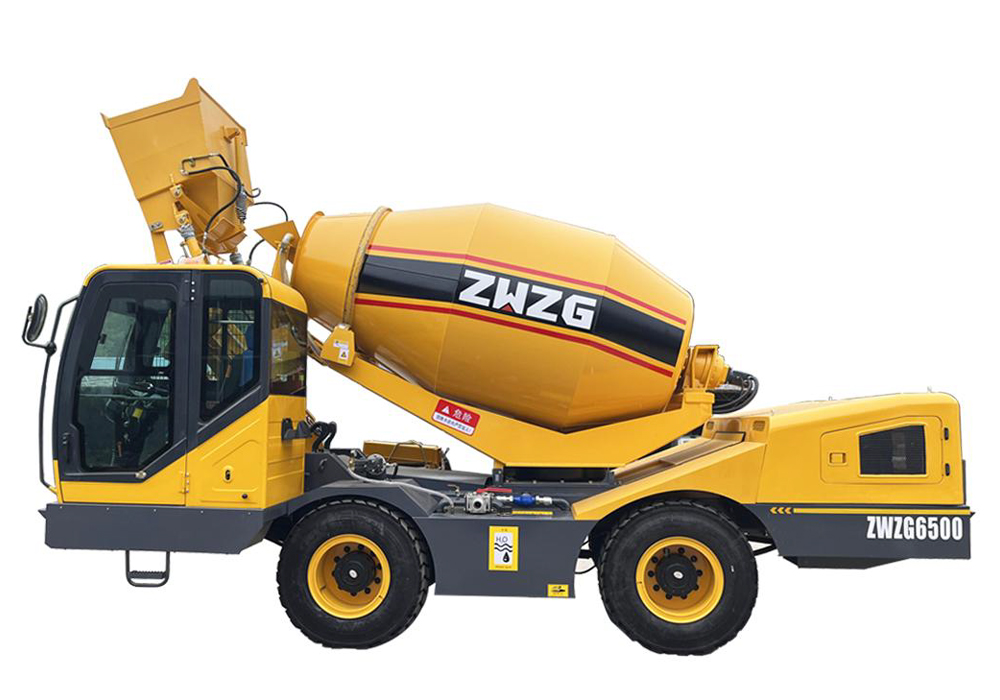

| Content | 1. Maximum drum capacity 6.5m3
2. Mixing output: 4.0m3
3. The net weight of the machine is 8100kg
4. Full hydraulic transmission
5. Four Wheel Drive
6. Wheel deceleration car shaft, brake, air cover oil, off -road chassis
7. Tread 1900mm
8. Wheelbase 2300mm
9. Loader bucket capacity 0.6m3
10. Hydraulic pilot operation mode
11. Electronically controlled bucket opening and closing
12. Hydraulic gearbox, F2/R2, high speed 0-25KM/H, low speed 0-9KM/H
13. Minimum turning radius 5.5M/R
14. Tire Model 16/70-20
15. Engine: YUNNEI ，4-CYLINDER 2200RPM,92KW
16. Slope 16°
17. Rotation angle 19-21R/min
18. Swing angle of chute ≥60°
19. Size: 7700*2600*3450mm
20. Working efficiency: 18m3/h
21. Air conditioner
22. Electronic weight (installation system)
23.High pressure cleanin | 1. Tank capacity: 2.2m3
2. Stirring output: 1.5m3
3. Engine: YN27GBZ -58 kW
4. Small wheel side reduction axle
5. Brake: disc brake
6. Transmission: 265 hydraulic torque converter, full hydraulic transmission, F4/R4
7. Tires: front wheel 750-16 (4 pieces) rear wheel: 12-16.5 (2 pieces)
8. Reversing image
9. Hydraulic pilot control
10. High-quality high-pressure oil pipe, 24° pipeline, with 0-type sealing joint
11. Hydraulic control hopper opening
12. Handover and steering
13. Driving speed: 1-30km/h
14. Drive mode: 4-wheel drive
15. Unloading method: the tank body is forward-tilted unloading, and the unloading trough can swing at multiple angles.
16. Luxurious cab.
17. Self-priming water pump
18. Electronic control automatically adds water.
19. Water tank capacity: 350L
20: Dimensions (length * width * height): 6550 * 2350* 2450mm
21. Machine weight: 5000kg | 1. Yuchai engine: 85KW
2. Tank capacity: 4.2m3
3. Stirring output: 3.0m3
4. Hydraulic gearbox, torque converter 280. F2/R2, with high and low speed conversion.
5. Increase the wheel side reduction shaft, each bridge has 4 brake calipers. The vehicle has 8 brake calipers.
6. Tires: 16/70-20
7. Automatically measure the water supply.
8. Reverse the movie
9. Pilot operating handle
10. Temperature control, used for heat dissipation in the oil circuit of the hybrid power system.
11. Positive oblique discharge + 270° rotating discharge.
12. Machine weight: 8000 kg
13. Dimensions (length * width * height): 7200 * 2400 * 3300mm | 1. Tank capacity: 5.5m3
2.Stirring output: 3.5m3
3. Drum rotation: the height of the discharge port is 1.8 meters, the boom drum cab swings 270° horizontally, and the tank body can be raised and lowered
4. Engine: Yuchai Power YCD4J22T—116, diesel, water-cooled, 4-cylinder, 2400 rpm, rated power 85KW
5. Transmission mode: The engine is directly connected to the 280 torque converter, and the transmission shaft is connected to the gearbox with dual high and low speeds, and the transmission shaft is connected to the front and rear axles to achieve
6-wheel drive.
7. Climbing: 40° Speed: double high and low, low speed 0-25 km/h, high speed 0-40 km/h
8. Driving seat: luxurious cab, anti-rolling, anti-falling object type, luxurious seat
9. Hydraulic system: open type oil inlet, plunger motor, two gear pumps participate in the work
10. Joystick: Two hydraulic pilot joysticks control the bucket, boom, 270°rotation, and tank raising
11. Bucket: 0.65 cubic meters, hydraulic gate
12. Chute: equipped with a 150CM removable trough QINGZHOU ZHONGWEI MACHINERY CO., LTD. to increase the discharge length
13. Water supply system: self-priming drive water pump, 24V self-timed centrifugal pump,
14. Brake: Use the car's double air-break brakes, using a single wheel with 4 pistons and double brake calipers
15. Steering: dual hydraulic cylinders articulated steering
16. Tire: 12R-22.5 steel wire high pressure vacuum tire
17. Power system: 24V
18. Whole machine weight: 8800KG
19. Dimensions: 7500*2750*3200mm
20. Work efficiency: 15m3/h | 1. Tank capacity: 3.2m3
2. Stirring output: 2.0m3
3. Engine: YN-76KW
4. Hydraulic gearbox, torque converter 280. F2/R2, with high and low speed conversion.
5. Increase the wheel side reduction shaft, each bridge has 4 brake calipers. The vehicle has 8 brake calipers.
6. Tires: 25.5/70-16 semi-steel tires
7. Automatic measurement of water supply.
8. Reversing video
9. Hydraulic pilot operation mode
10. Temperature control, used for heat dissipation hybrid power circuit system.
11. Positive oblique discharge, 270° rotating discharge concrete.
12. Machine weight: 6500 kg
13. Dimensions (length * width * height): 7200 * 2400 * 3300 mm | 1. Yuchai engine: 85KW
2. Tank capacity: 5.0m3
3. Stirring output: 3.5m3
4. Hydraulic gearbox, torque converter 280. F2/R2, with high and low speed conversion.
5. Increase the wheel side reduction shaft, each bridge has 4 brake calipers. The vehicle has 8 brake calipers.
6. Tires: 16/70-20
7. Automatically measure the water supply.
8. Reverse the movie
9. Pilot operating handle
10. Temperature control, used for heat dissipation in the oil circuit of the hybrid power system.
11. Positive oblique discharge + 270° rotating discharge.
12. Machine weight: 8000 kg
13. Dimensions (length * width * height): 7200 * 2400 * 3300mm |
